Board to Board Connector
Floating board-to-board connectors keep signal and power transmission stable under vibration, movement, and thermal expansion.
46 filtering results in total
FILTER
-
Product Series
0.4 mm Floating Board-to-Board Series
BTB1.8-1 Series
B3501 Series
BTB0.8-12 Series
TB101/TB201 Series
B0813 Floating Series
0.5-8 High-speed Transmission Floating Series
0.8 Floating Series
0.635 Floating Series
0.5-6 Floating Series
0.5-5 Floating Series
-
Pitch
0.5 mm
0.8 mm
0.635 mm
0.4 mm
3.5 mm
-
Floating Range
Non-floating
—
XY ± 0.6 mm
XY ± 0.8 mm
XY ± 0.5 mm
X/Y/Z: ±1.0 mm
X/Y: ±0.8 mm; Z: ±0.5 mm
XY ± 0.7 mm
— (not applicable)
XY ± 0.4 mm
-
Connection Orientation
Straight (ST)
Right Angle (RA)
Right angle
Vertical
ST (straight)
-
Connector Type
Plug
Receptacle
Board-to-board receptacle
Apply
-

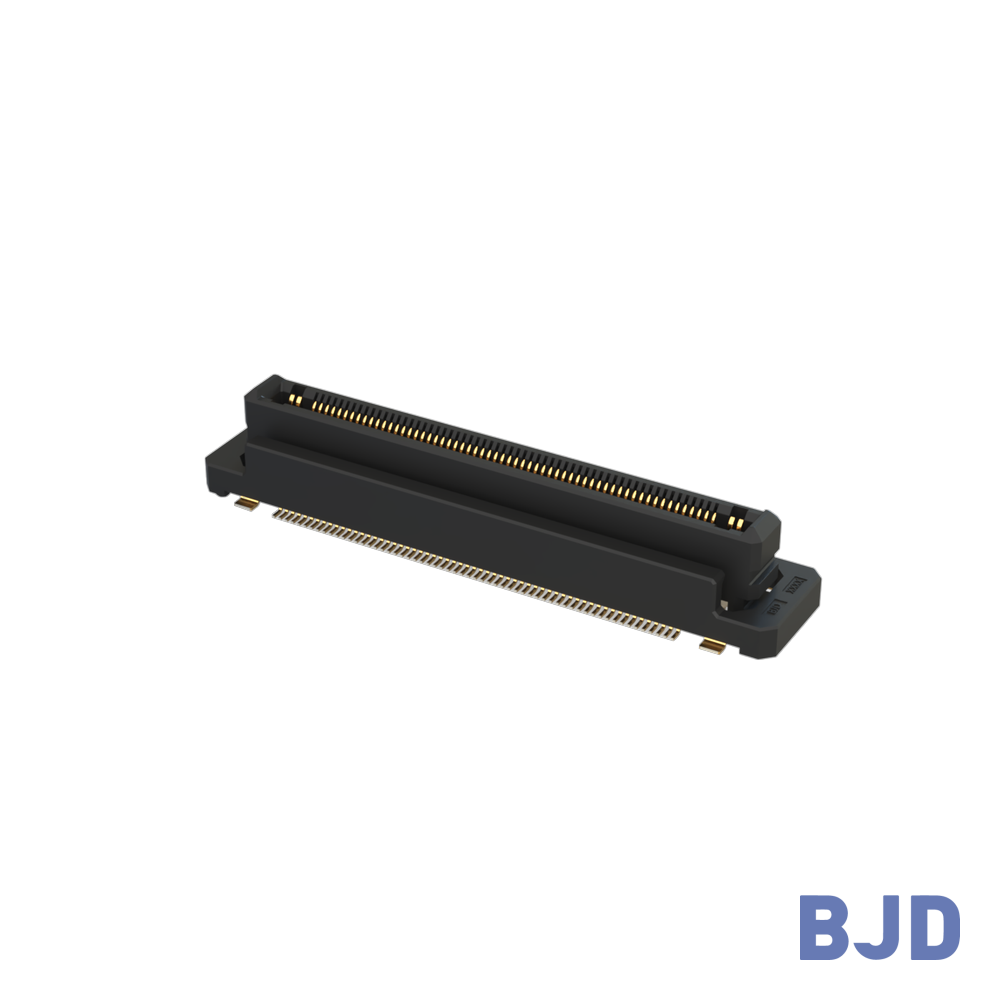

Series
Connector Type
Receptacle
Mating Part Number
123069-60XX50-HF, 123072-60XX50-HF, 123073-60XX50-HF, 123082-60XX50-HF
Material
Copper alloy, high-temperature-resistant resin
Pin Count
20–160
Pitch
0.5 mm
Mated Height
10, 11, 12, 14, 16, 18, 20, 21 mm
Floating Range
XY ± 0.8 mm
Connection Orientation
Straight (ST)
Soldering Process
SMT
Rated Current
Signal: 0.5 A/Pin
Rated Voltage
50 V AC/DC
Withstand Voltage
AC 250 V/min
Operating Temperature Range
-40°C to 125°C
Transmission Rate
16 Gbps
Supported Protocol
Power Terminals
5A × 4
Mating Cycles
RoHS 2
Halogen-Free
Compatible Replacement
IRISO 10143
Note
-
Series
Connector Type
Plug
Mating Part Number
Material
Pin Count
60, 80
Pitch
0.635 mm
Mated Height
Floating Range
XY ± 0.7 mm
Connection Orientation
Straight (ST)
Soldering Process
SMT
Rated Current
0.5 A/Pin
Rated Voltage
50 V AC/DC
Withstand Voltage
Operating Temperature Range
-40°C to 105°C
Mating Cycles
100
RoHS 2
Compliant
Halogen-Free
Yes
Compatible Replacement
KEL
Note
-

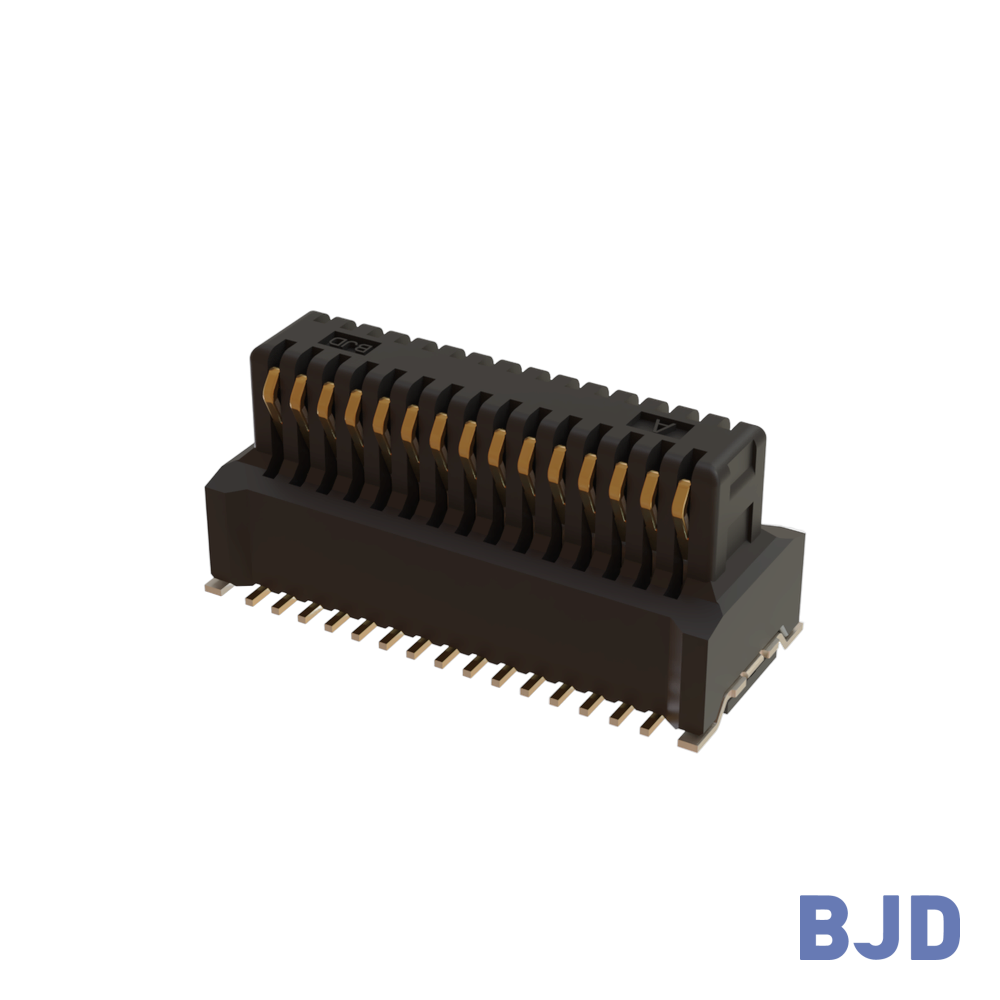

Series
Connector Type
Plug
Mating Part Number
123059-60XX50-HF
Material
Pin Count
20, 30, 40, 50, 60
Pitch
0.4 mm
Mated Height
4 mm
Floating Range
Non-floating
Connection Orientation
Straight (ST)
Soldering Process
SMT
Rated Current
0.4 A/Pin
Rated Voltage
50 V AC/DC
Withstand Voltage
Operating Temperature Range
-40°C to 125°C
Mating Cycles
RoHS 2
Compliant
Halogen-Free
Yes
Compatible Replacement
IRISO 10126B
Note
-

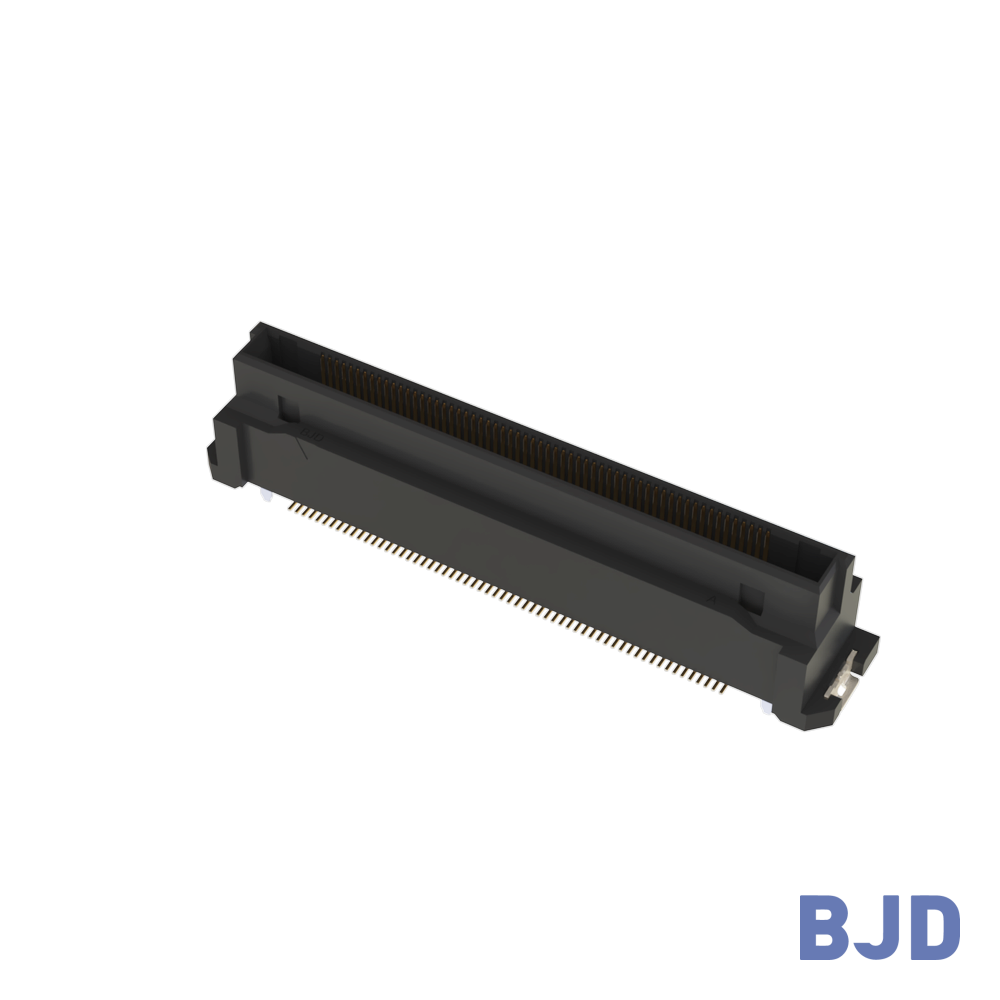

Series
Connector Type
Plug
Mating Part Number
123045-60XX50-HF
Material
Copper alloy, polyamide (nylon), UL94V-0
Pin Count
20, 30, 40, 50, 60, 80, 100, 120
Pitch
0.5 mm
Mated Height
12 mm
Floating Range
—
Connection Orientation
Straight (ST)
Soldering Process
SMT
Rated Current
Signal: 0.5 A/Pin
Rated Voltage
Signal: 50 V AC; Power: 200 V AC
Withstand Voltage
Signal (PIN): AC 150 V/min; Power (PIN): AC 600 V/min
Operating Temperature Range
-55°C to 105°C
Transmission Rate
8 Gbps
Supported Protocol
PCI-Express 3.0
Power Terminals
5A × 4
Mating Cycles
100
RoHS 2
Compliant
Halogen-Free
Yes
Compatible Replacement
Amphenol B322
Note
-

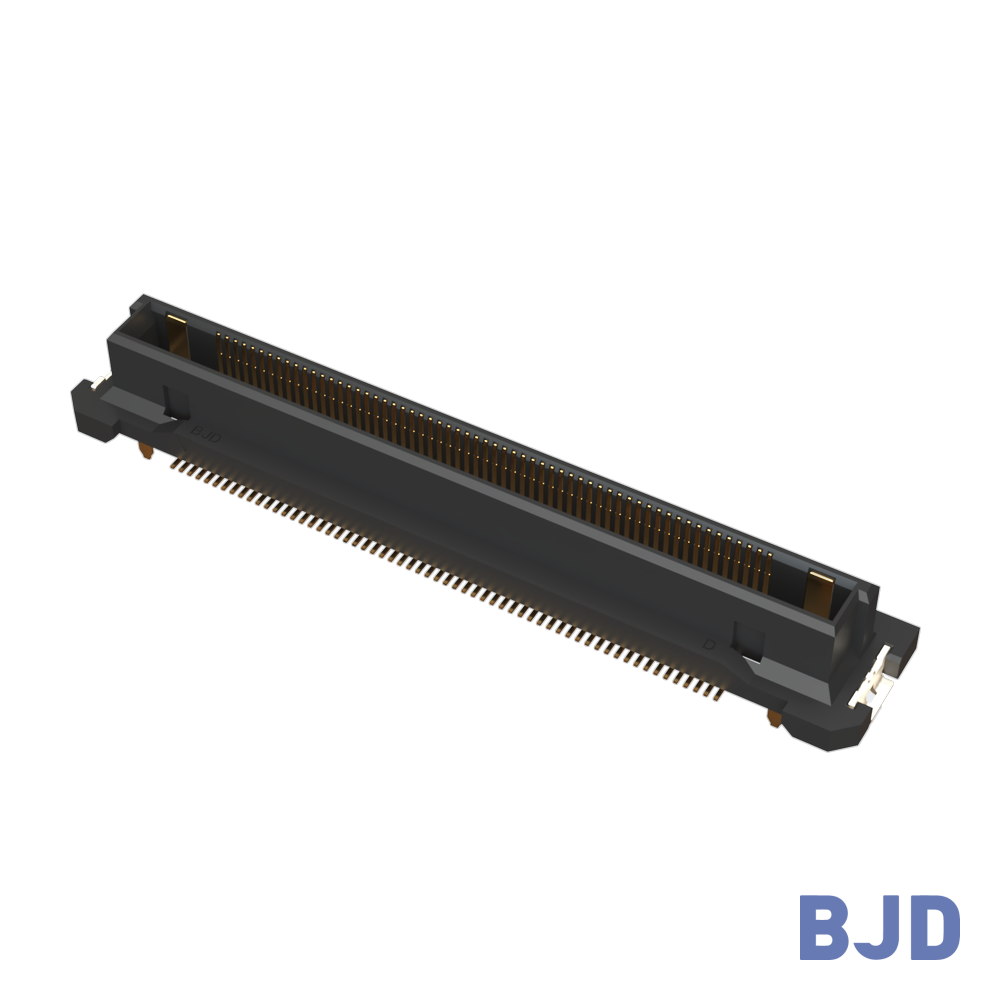

Series
Connector Type
Plug
Mating Part Number
123041-60XX50-HF
Material
Copper alloy, polyamide (nylon), UL94V-0
Pin Count
20, 30, 40, 50, 60, 80, 100, 120
Pitch
0.5 mm
Mated Height
8 mm
Floating Range
—
Connection Orientation
Straight (ST)
Soldering Process
THR
Rated Current
Signal: 0.5 A/Pin
Rated Voltage
Signal: 50 V AC; Power: 200 V AC
Withstand Voltage
Signal (PIN): AC 150 V/min; Power (PIN): AC 600 V/min
Operating Temperature Range
-55°C to 105°C
Transmission Rate
8 Gbps
Supported Protocol
PCI-Express 3.0
Power Terminals
5A × 4
Mating Cycles
100
RoHS 2
Compliant
Halogen-Free
Yes
Compatible Replacement
HRS FX23L
Note
