Wire to Board Connector
Wire-to-board connectors provide reliable cable-to-PCB connections for automotive, communication, and industrial electronics.
FILTER
-
Product Series
14131X Keyed Right-Angle SMT Wafer Series
WTB2203A Series
WTB2001X-8P / WTB2002X-8P Series
WTB3502 Series
WTB3501 Series
WTB2601 Series
WTB25401 Series
WTB2503 Series
WTB2502 Series
WTB2501 Series
WTB2202 Series
WTB2201 Series
14119X Series
WTB2.54-1 Series
14136X Series
14135X Series
P2.0-7-12P Board Side Series
P3.5 Series
24137X Series
14134X Series
14124X Series
141223X Series
14118X Series
X4117X Series
X4111X Series
14106X Series
X4101X Series
X4104X Series
24100X Series
-
Series type
Board connectors
Connector systems
Wire-side components
-
Pitch
1 mm
1.25 mm
1.8 mm
2 mm
2.2 mm
2.5 mm
2.54 mm
2.6 mm
3.5 mm
-
Number of rows
Single row
Double row
-
Mating orientation
Horizontal / right angle
Vertical
-
PCB mounting method
DIP / wave soldering
PIP / THR
SMT
-
With CPA
No
Yes
Apply
-

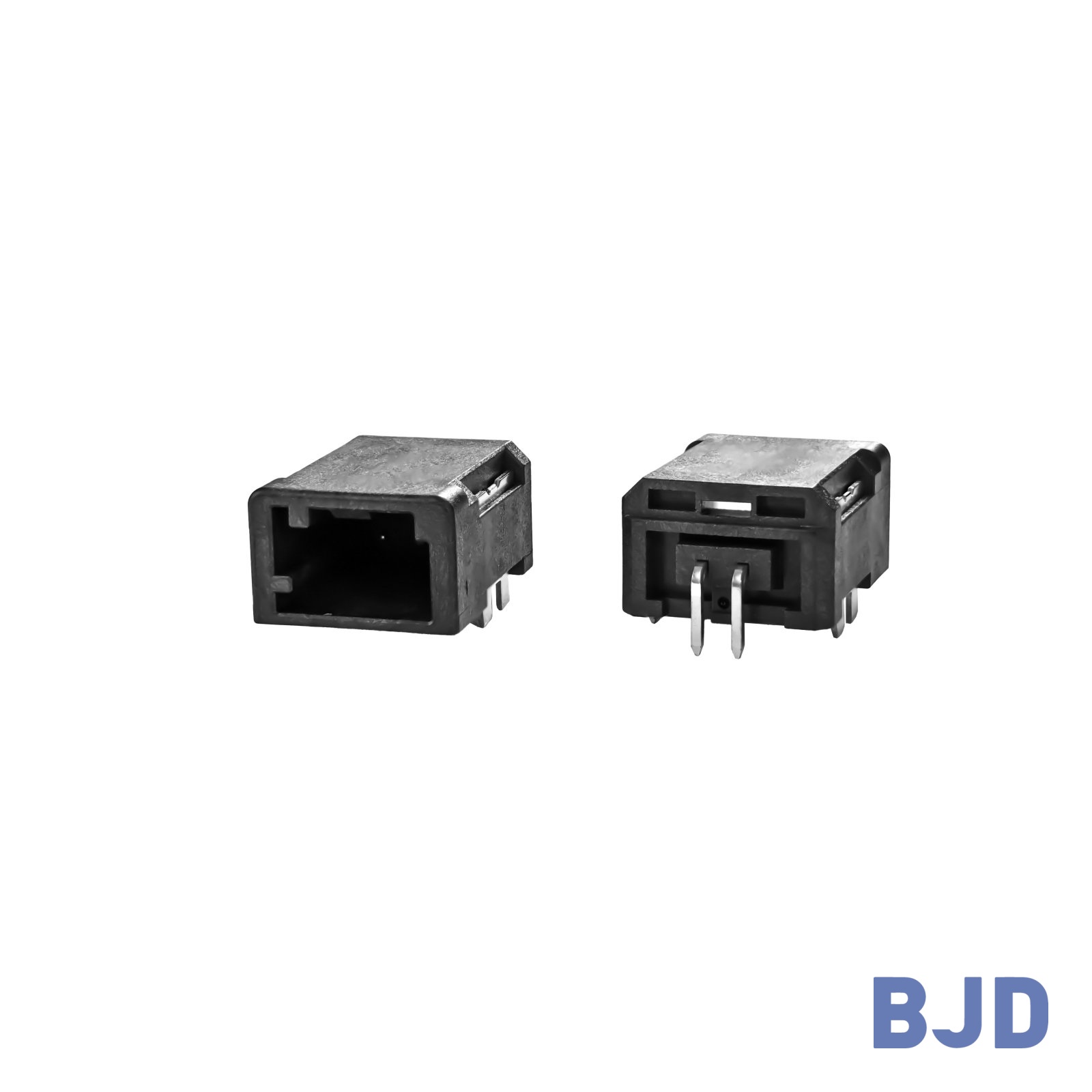

The WTB2601 Series is a 2.6 mm pitch, 2-pin wire-to-board PCB connector series using PIP (through-hole reflow) mounting.
Explore now
Specifications
Component Type
PCB connector series
Pin Count
2
Pitch
2.6 mm
Number of Rows
CODE Type
With CPA
Connection Orientation
PCB Mounting Method
PIP (through-hole reflow)
Soldering Process
Material
Terminals / hold-downs: brass; housing: LCP
Rated Current
3 A AC/DC max/pin
Rated Voltage
Withstand Voltage
AC 1000 V/min
Contact Resistance
16 mΩ max
Operating Temperature Range
−40°C to +125°C
Vibration Rating
Compatible Replacement
Note
-

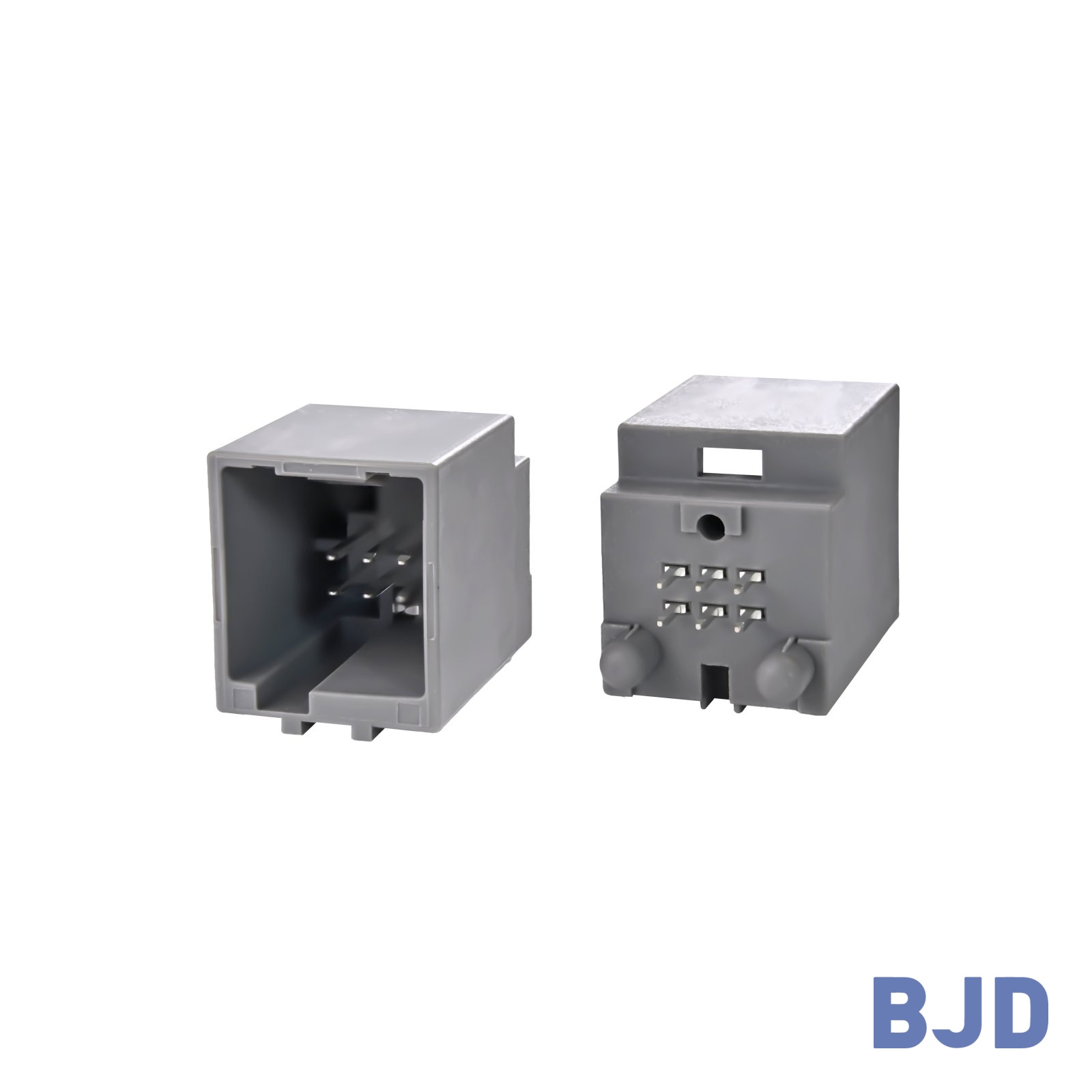

The WTB25401 Series is a 2.54 mm pitch, 6-pin wire-to-board PCB connector series using PIP (through-hole reflow) mounting.
Explore now
Specifications
Component Type
PCB connector series
Pin Count
6
Pitch
2.54 mm
Number of Rows
CODE Type
With CPA
Connection Orientation
PCB Mounting Method
PIP (through-hole reflow)
Soldering Process
Material
Terminals: brass; housing: PA9T
Rated Current
7 A AC/DC max/pin
Rated Voltage
Withstand Voltage
AC 500 V/min
Contact Resistance
20 mΩ max
Operating Temperature Range
−40°C to +105°C
Vibration Rating
Compatible Replacement
Note
-

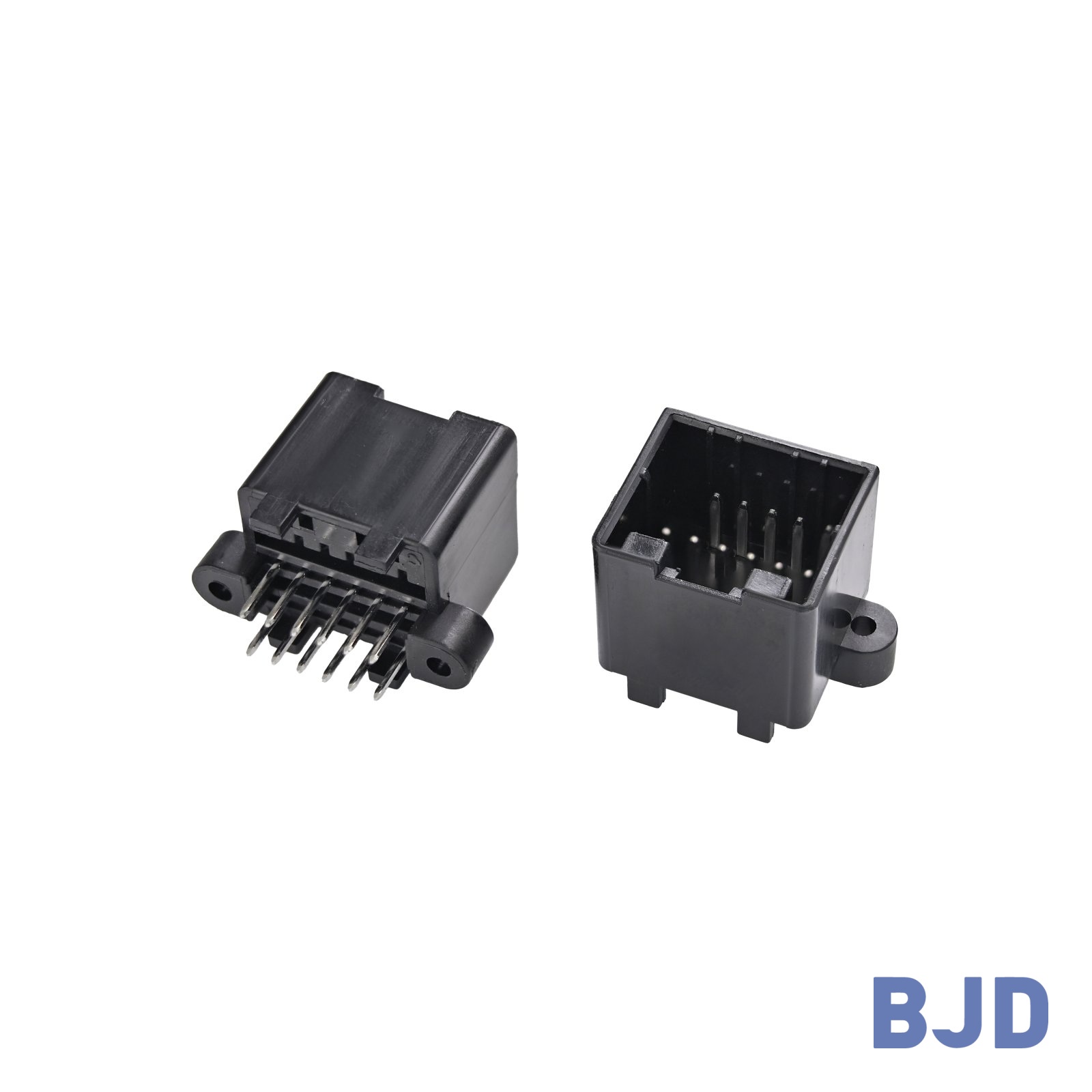

The WTB2503 Series is a 2.5 mm pitch, 12-pin wire-to-board PCB connector series using DIP (wave soldering) mounting.
Explore now
Specifications
Component Type
PCB connector series
Pin Count
12
Pitch
2.5 mm
Number of Rows
CODE Type
With CPA
Connection Orientation
PCB Mounting Method
DIP (wave soldering)
Soldering Process
Material
Terminals: brass; housing: PBT
Rated Current
5 A AC/DC max/pin
Rated Voltage
Withstand Voltage
AC 500 V/min
Contact Resistance
20 mΩ max
Operating Temperature Range
−40°C to +85°C
Vibration Rating
Compatible Replacement
Note
-

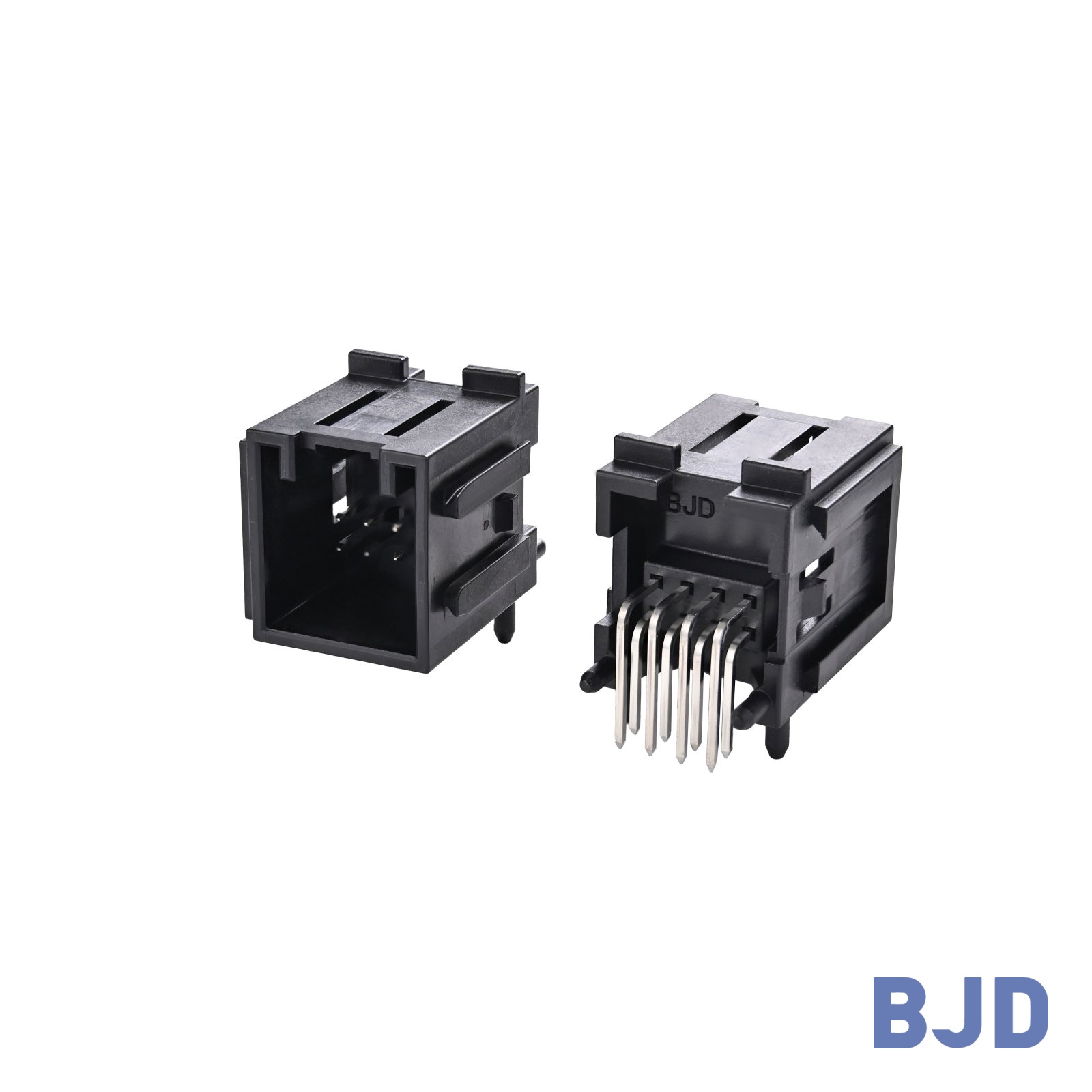

The WTB2502 Series is a 2.5 mm pitch, 8-pin wire-to-board PCB connector series using PIP (through-hole reflow) mounting.
Explore now
Specifications
Component Type
PCB connector series
Pin Count
8
Pitch
2.5 mm
Number of Rows
CODE Type
With CPA
Connection Orientation
PCB Mounting Method
PIP (through-hole reflow)
Soldering Process
Material
Terminals: brass; housing: PA10T
Rated Current
5 A AC/DC max/pin
Rated Voltage
Withstand Voltage
AC 1000 V / DC 1600 V
Contact Resistance
20 mΩ max
Operating Temperature Range
−40°C to +105°C
Vibration Rating
Compatible Replacement
Note
-

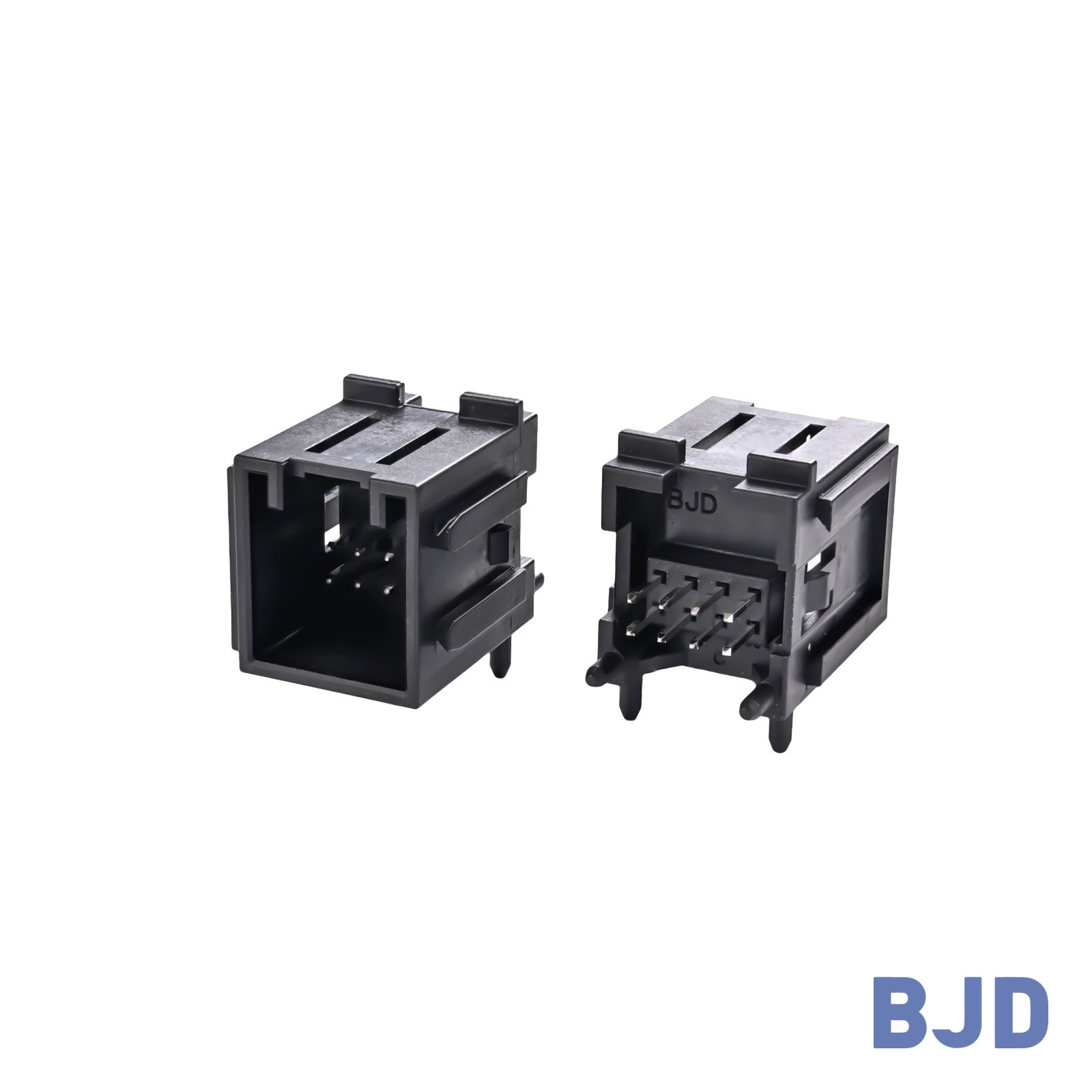

The WTB2501 Series is a 2.5 mm pitch, 8-pin wire-to-board PCB connector series using PIP (through-hole reflow) mounting.
Explore now
Specifications
Component Type
PCB connector series
Pin Count
8
Pitch
2.5 mm
Number of Rows
CODE Type
With CPA
Connection Orientation
PCB Mounting Method
PIP (through-hole reflow)
Soldering Process
Material
Terminals: brass; housing: PA10T
Rated Current
5 A AC/DC max/pin
Rated Voltage
Withstand Voltage
AC 1000 V / DC 1600 V
Contact Resistance
20 mΩ max
Operating Temperature Range
−40°C to +105°C
Vibration Rating
Compatible Replacement
Note
