Wire to Board Connector
Wire-to-board connectors provide reliable cable-to-PCB connections for automotive, communication, and industrial electronics.
FILTER
-
Product Series
14131X Keyed Right-Angle SMT Wafer Series
WTB2203A Series
WTB2001X-8P / WTB2002X-8P Series
WTB3502 Series
WTB3501 Series
WTB2601 Series
WTB25401 Series
WTB2503 Series
WTB2502 Series
WTB2501 Series
WTB2202 Series
WTB2201 Series
14119X Series
WTB2.54-1 Series
14136X Series
14135X Series
P2.0-7-12P Board Side Series
P3.5 Series
24137X Series
14134X Series
14124X Series
141223X Series
14118X Series
X4117X Series
X4111X Series
14106X Series
X4101X Series
X4104X Series
24100X Series
-
Series type
Board connectors
Connector systems
Wire-side components
-
Pitch
1 mm
1.25 mm
1.8 mm
2 mm
2.2 mm
2.5 mm
2.54 mm
2.6 mm
3.5 mm
-
Number of rows
Single row
Double row
-
Mating orientation
Horizontal / right angle
Vertical
-
PCB mounting method
DIP / wave soldering
PIP / THR
SMT
-
With CPA
No
Yes
Apply
-

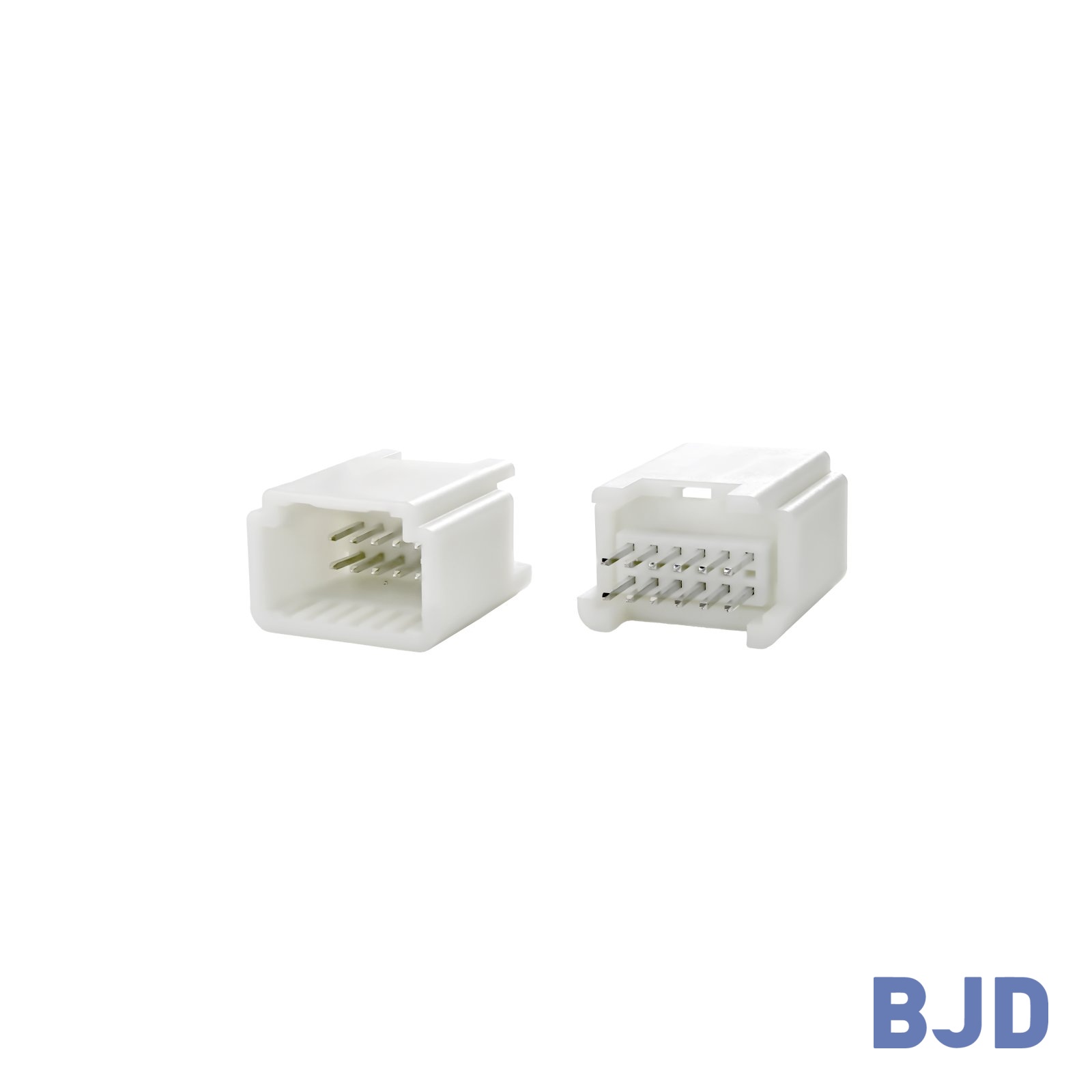

The WTB2202 Series is a 2.2 mm pitch, 12-pin wire-to-board PCB connector series using PIP (through-hole reflow) mounting.
Explore now
Specifications
Component Type
PCB connector series
Pin Count
12
Pitch
2.2 mm
Number of Rows
CODE Type
With CPA
Connection Orientation
PCB Mounting Method
PIP (through-hole reflow)
Soldering Process
Material
Terminals: brass; housing: PA10T
Rated Current
3 A AC/DC max/pin
Rated Voltage
Withstand Voltage
AC 1000 V / DC 1600 V
Contact Resistance
15 mΩ max
Operating Temperature Range
−40°C to +105°C
Vibration Rating
Compatible Replacement
Note
-

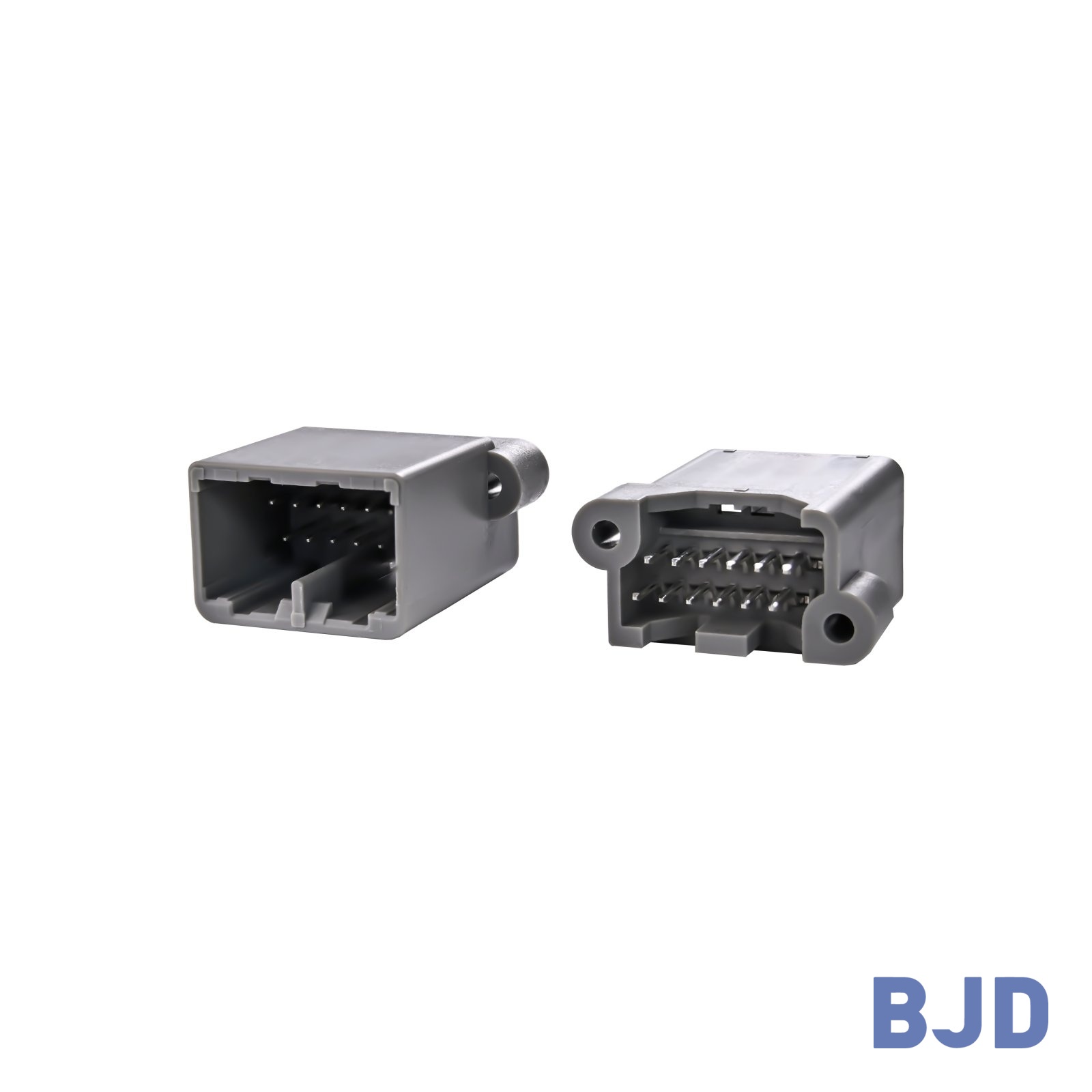

The WTB2201 Series is a 2.2 mm pitch, 12-pin wire-to-board PCB connector series using PIP (through-hole reflow) mounting.
Explore now
Specifications
Component Type
PCB connector series
Pin Count
12
Pitch
2.2 mm
Number of Rows
CODE Type
With CPA
Connection Orientation
PCB Mounting Method
PIP (through-hole reflow)
Soldering Process
Material
Terminals: brass; housing: SPS
Rated Current
3 A AC/DC max/pin
Rated Voltage
Withstand Voltage
AC 1000 V / DC 1600 V
Contact Resistance
15 mΩ max
Operating Temperature Range
−40°C to +105°C
Vibration Rating
Compatible Replacement
Note
-

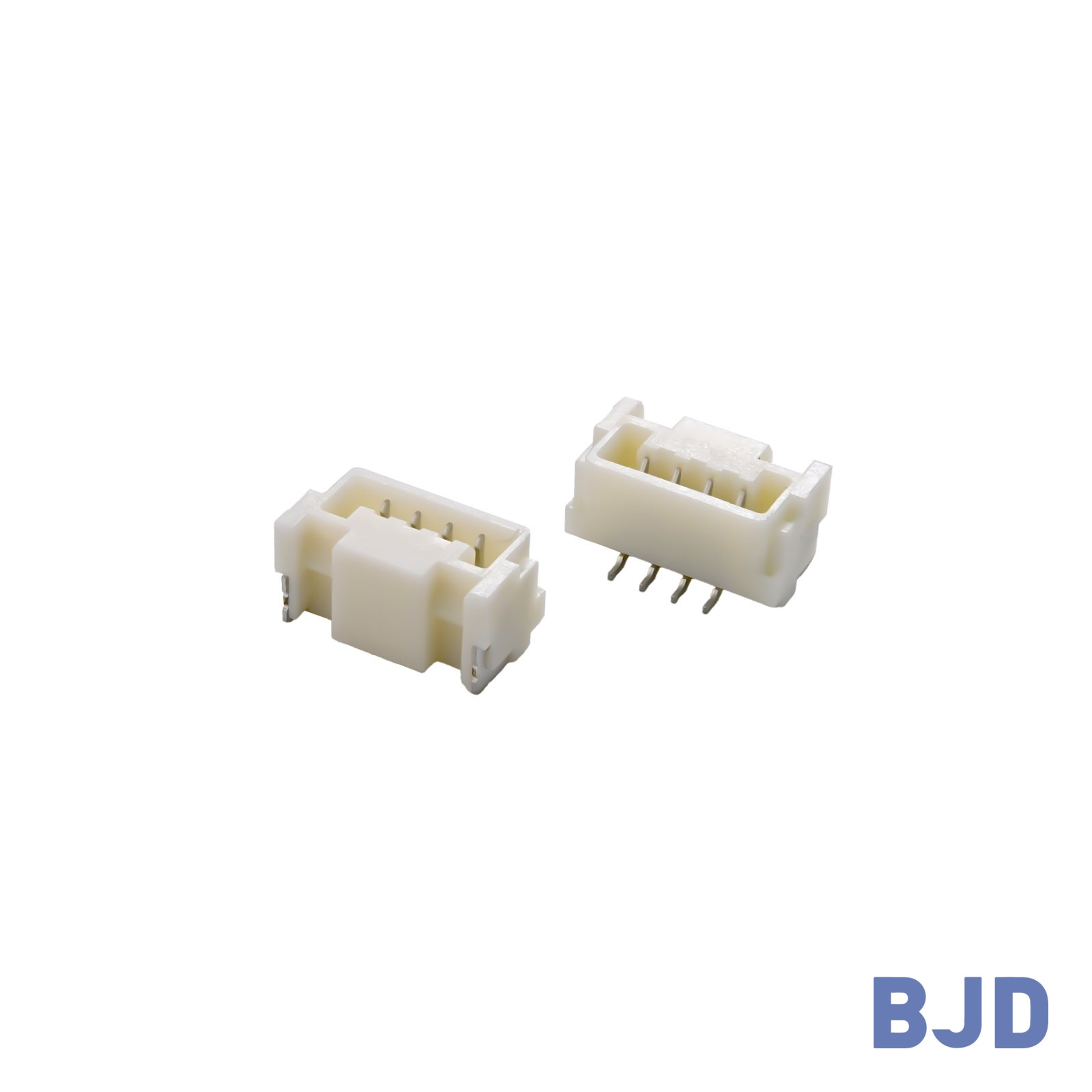

The 14119X Series is a 1.25 mm pitch, 4-pin wire-to-board PCB connector series using SMT mounting.
Explore now
Specifications
Component Type
PCB connector series
Pin Count
4
Pitch
1.25 mm
Number of Rows
CODE Type
With CPA
Connection Orientation
PCB Mounting Method
SMT
Soldering Process
Material
PA6T
Rated Current
1 A AC/DC max/pin
Rated Voltage
Withstand Voltage
AC 500 V/min
Contact Resistance
20 mΩ max (initial); 50 mΩ max (after test)
Operating Temperature Range
−40°C to +85°C
Vibration Rating
Compatible Replacement
Note
-
The WTB2.54-1 Series is a 2.54 mm-pitch wire-to-board connector system comprising a 4-position cable-side housing and a 90° cable-side terminal; the terminal is rated at 3 A AC/DC max per pin.
Explore now
Specifications
Components
4-position cable-side housing + 90° cable-side terminal
Component Type
Pin Count
4
Pitch
2.54 mm
Number of Rows
CODE Type
With TPA
Material
Rated Current
3 A AC/DC max/pin
Withstand Voltage
Contact Resistance
Operating Temperature Range
−40°C to 105°C
Compatible Replacement
Note
-

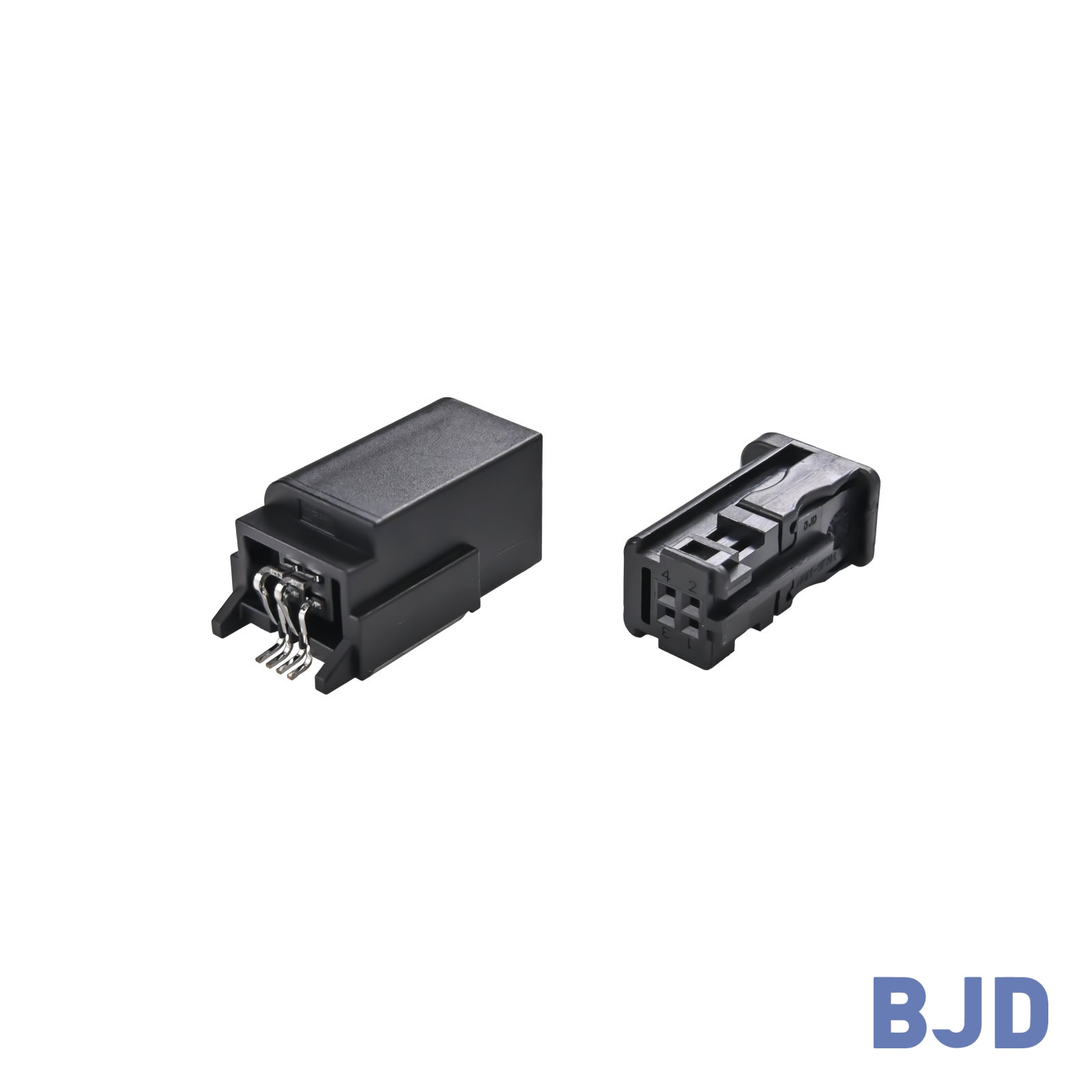

The 14136X Series is a 1.8 mm-pitch, 4-position wire-to-board connector system comprising a right-angle SMT header and a cable-side housing, rated for −40°C to 125°C operation.
Explore now
Specifications
Components
Right-angle SMT header + cable-side housing
Component Type
Pin Count
4
Pitch
1.8 mm
Number of Rows
CODE Type
With CPA
With TPA
PCB Mounting Method
Soldering Process
Material
Rated Current
Rated Voltage
Withstand Voltage
Contact Resistance
Operating Temperature Range
−40°C to 125°C
Vibration Rating
Compatible Replacement
Note
