Wire to Board Connector
Wire-to-board connectors provide reliable cable-to-PCB connections for automotive, communication, and industrial electronics.
FILTER
-
Product Series
14131X Keyed Right-Angle SMT Wafer Series
WTB2203A Series
WTB2001X-8P / WTB2002X-8P Series
WTB3502 Series
WTB3501 Series
WTB2601 Series
WTB25401 Series
WTB2503 Series
WTB2502 Series
WTB2501 Series
WTB2202 Series
WTB2201 Series
14119X Series
WTB2.54-1 Series
14136X Series
14135X Series
P2.0-7-12P Board Side Series
P3.5 Series
24137X Series
14134X Series
14124X Series
141223X Series
14118X Series
X4117X Series
X4111X Series
14106X Series
X4101X Series
X4104X Series
24100X Series
-
Series type
Board connectors
Connector systems
Wire-side components
-
Pitch
1 mm
1.25 mm
1.8 mm
2 mm
2.2 mm
2.5 mm
2.54 mm
2.6 mm
3.5 mm
-
Number of rows
Single row
Double row
-
Mating orientation
Horizontal / right angle
Vertical
-
PCB mounting method
DIP / wave soldering
PIP / THR
SMT
-
With CPA
No
Yes
Apply
-

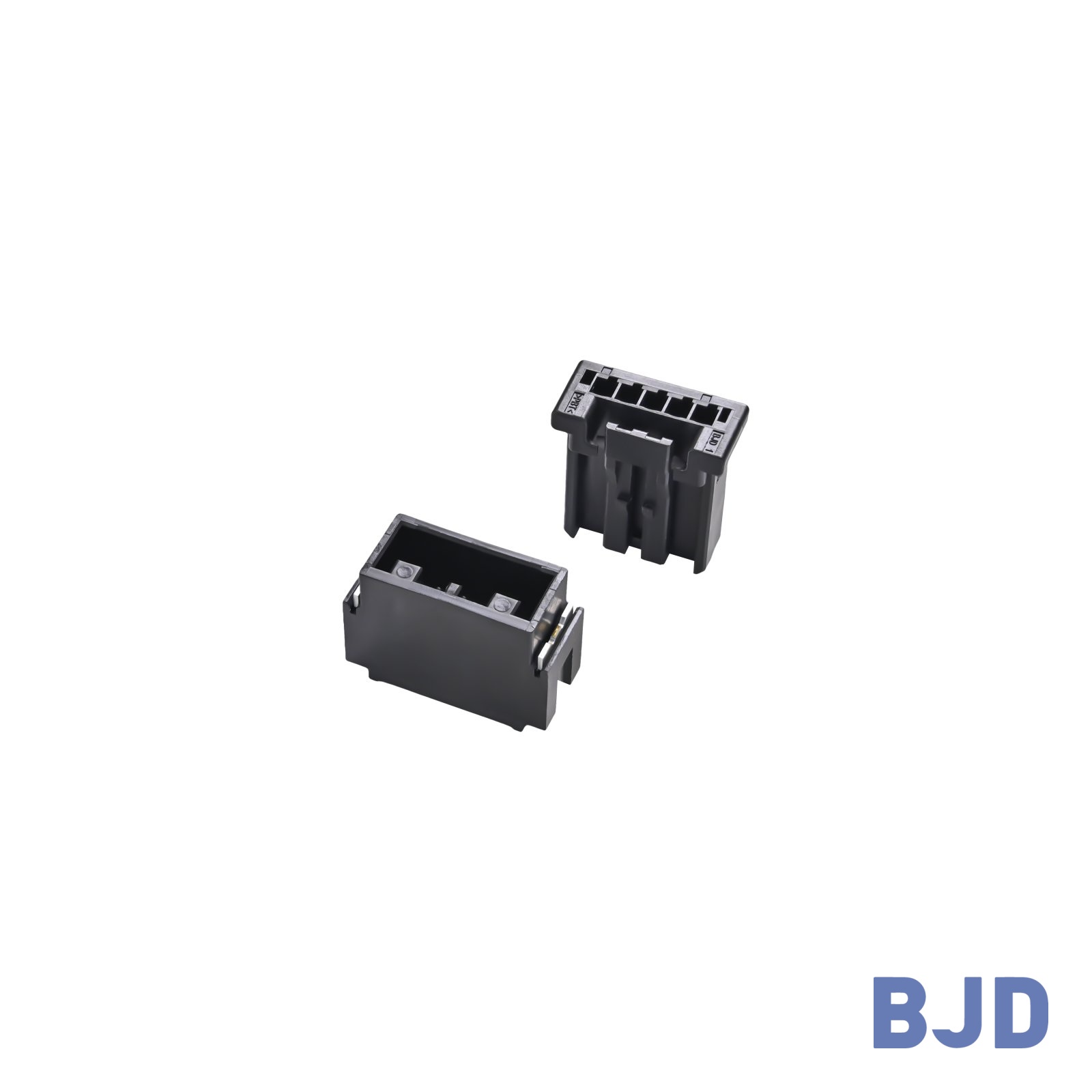

The 14135X Series is a 2.00 mm-pitch, 5-position, single-row wire-to-board connector system comprising a cable-side connector and a vertical board-side connector, rated at 3 A AC/DC max per pin.
Explore now
Specifications
Components
Cable-side connector + vertical board-side connector
Component Type
Pin Count
5
Pitch
2.00 mm
Number of Rows
Single row
CODE Type
With CPA
With TPA
PCB Mounting Method
Soldering Process
Material
Rated Current
3 A AC/DC max/pin
Rated Voltage
Withstand Voltage
AC 500 V/min
Contact Resistance
10 mΩ max (initial); 30 mΩ max (after test)
Operating Temperature Range
−40°C to 125°C
Vibration Rating
Compatible Replacement
Note
-

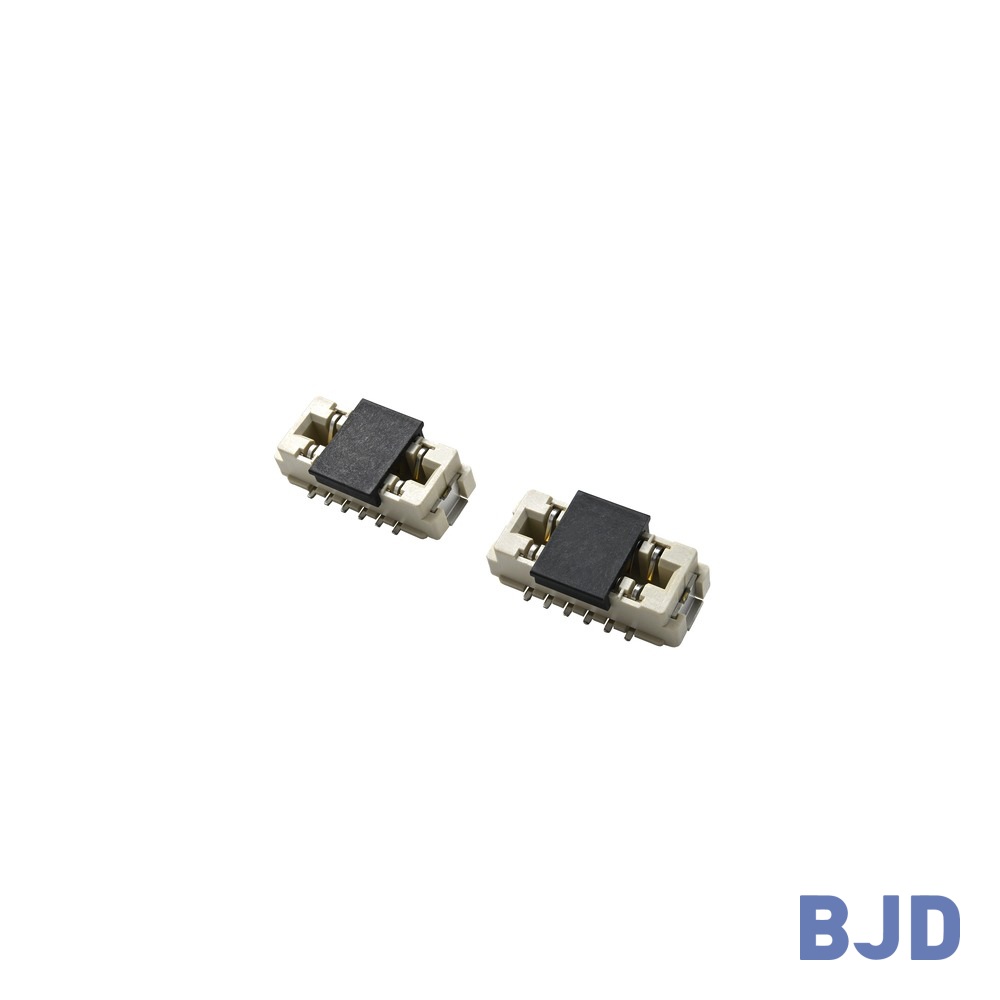

The P2.0-7-12P Board Connector Series is a 2.00 mm-pitch, 12-position vertical SMT board-side connector series rated at 4 A AC/DC max per pin and −40°C to 125°C.
Explore now
Specifications
Component Type
Pin Count
12
Pitch
2.00 mm
Number of Rows
CODE Type
With CPA
Connection Orientation
PCB Mounting Method
SMT
Soldering Process
Material
LCP
Rated Current
4 A AC/DC max/pin
Rated Voltage
Withstand Voltage
AC 1000 V/min
Contact Resistance
20 mΩ max (initial); 50 mΩ max (after test)
Operating Temperature Range
−40°C to 125°C
Vibration Rating
Compatible Replacement
Note
-

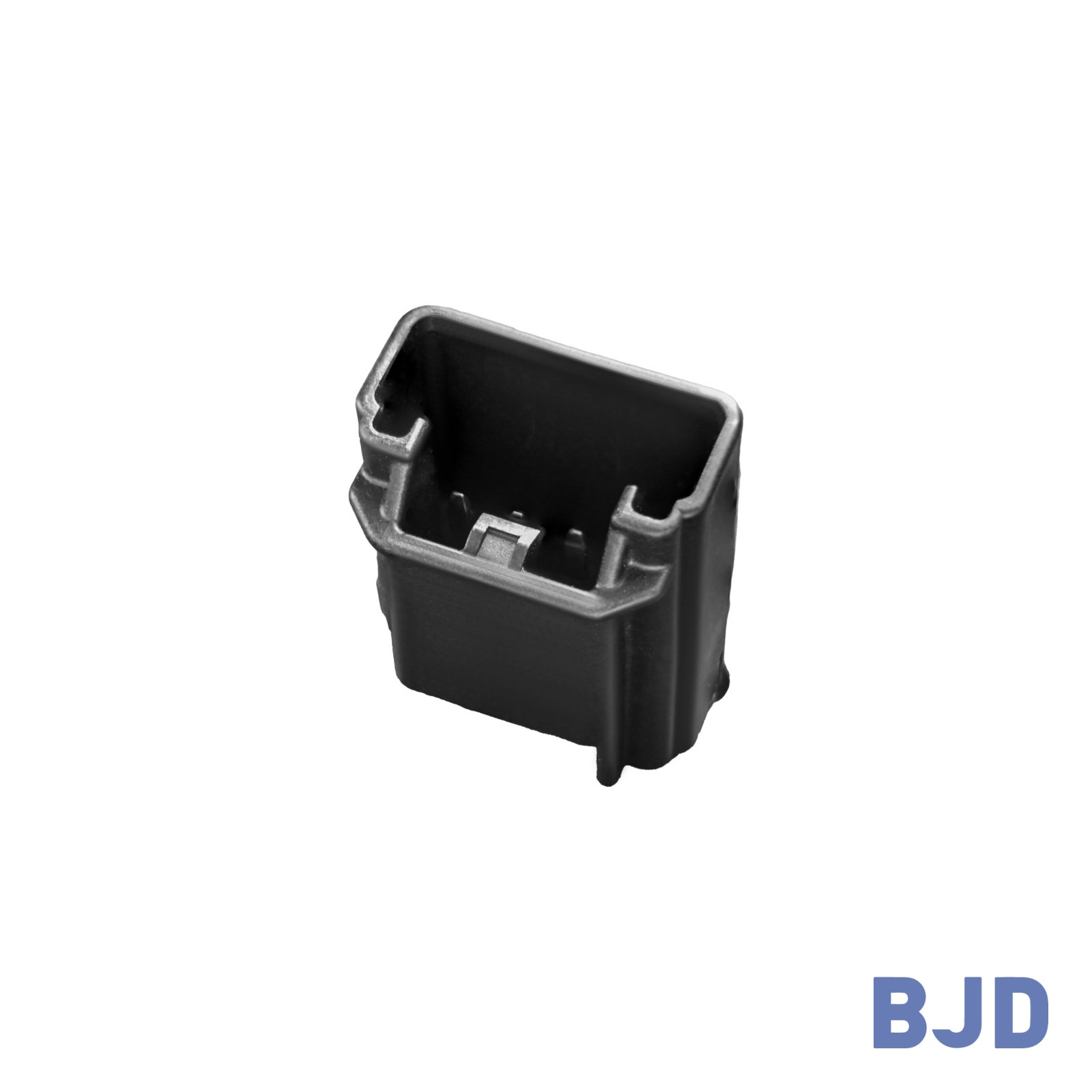

The P3.5 Series is a 3.5 mm-pitch, 4-position SMT board-side connector series rated at 3 A AC/DC max per pin and −40°C to 105°C.
Explore now
Specifications
Component Type
Pin Count
4
Pitch
3.5 mm
Number of Rows
CODE Type
With CPA
Connection Orientation
PCB Mounting Method
SMT
Soldering Process
Material
Rated Current
3 A AC/DC max/pin
Rated Voltage
Withstand Voltage
AC 1000 V / DC 1600 V
Contact Resistance
10 mΩ max (initial); 20 mΩ max (after test)
Operating Temperature Range
−40°C to 105°C
Vibration Rating
Compatible Replacement
Note
-

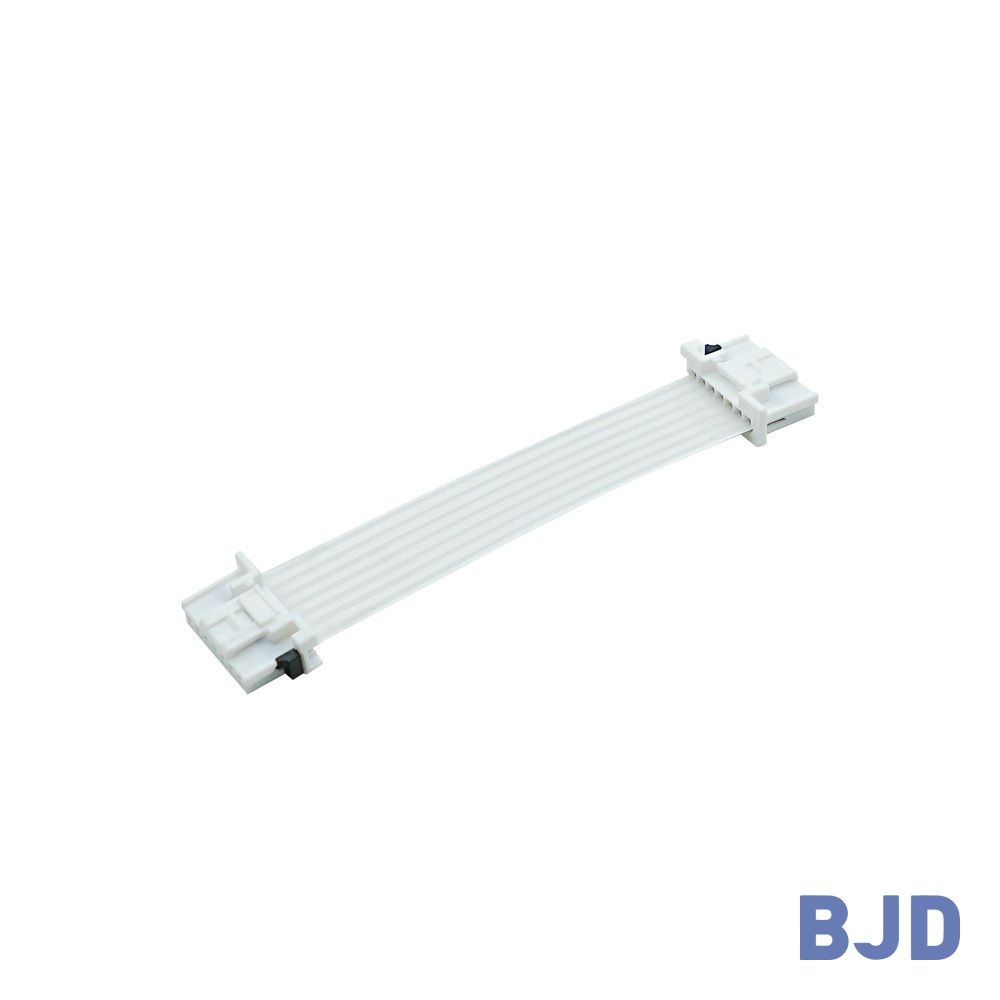

The 24137X Series is a 2.00 mm pitch, 2- to 15-pin family of wire-side FFC connector components comprising an FFC housing, FFC terminal, and TPA. Its operating temperature range is −40°C to +125°C.
Explore now
Specifications
Components
Component Type
Pin Count
2 to 15
Pitch
2.00 mm
Number of Rows
CODE Type
With TPA
Material
Housing: PBT; terminal: copper alloy; TPA: PBT
Rated Current
2 A AC/DC max/pin
Withstand Voltage
AC 1000 V / DC 1600 V
Contact Resistance
10 mΩ max (initial); 20 mΩ max (after test)
Operating Temperature Range
−40°C to +125°C
Compatible Replacement
Note
-

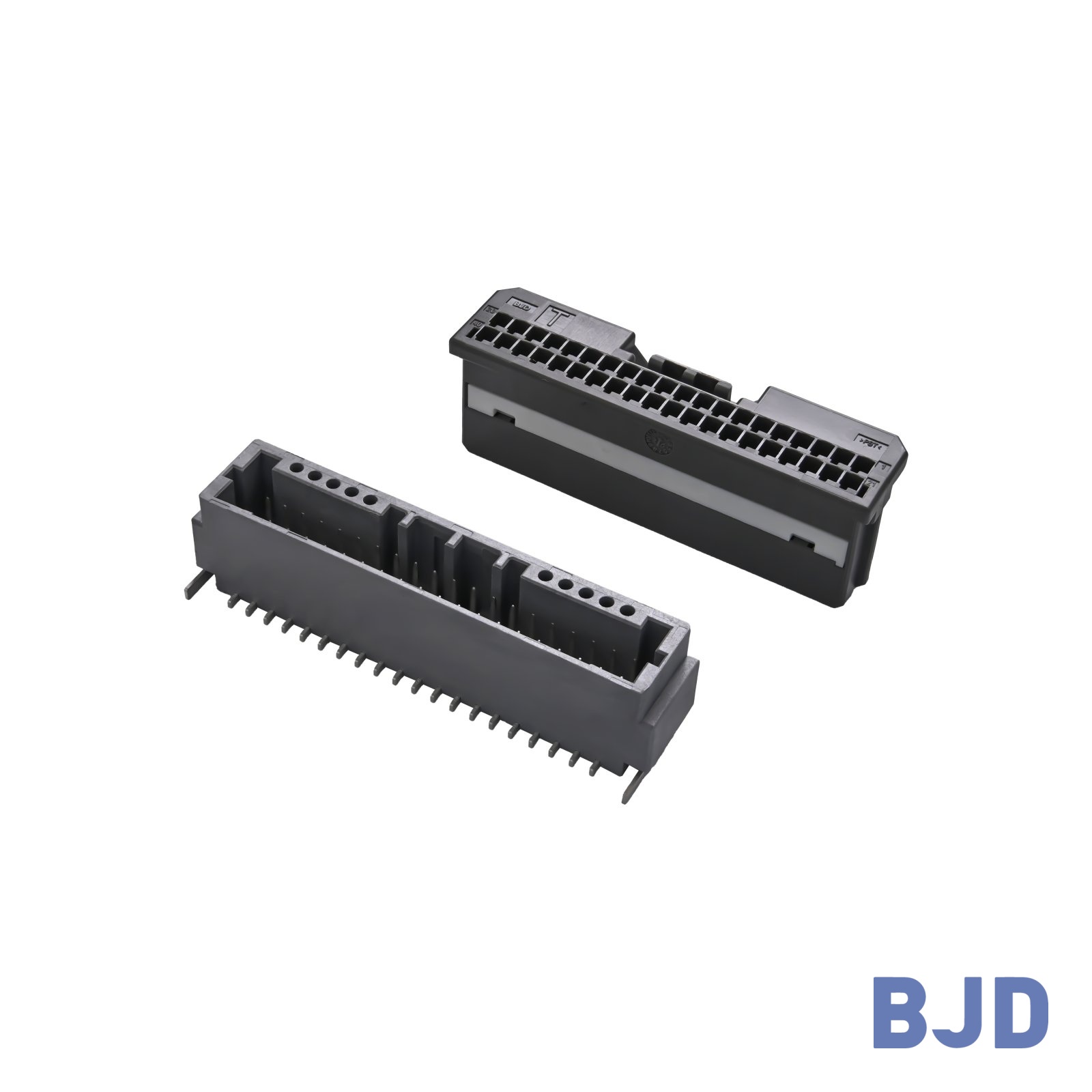

The 14134X Series is a 2.00 mm pitch, 32/40-pin dual-row wire-to-board connector family comprising vertical SMT board-side connectors and wire-side housings. Its operating temperature range is −40°C to +125°C.
Explore now
Specifications
Components
Component Type
Pin Count
32 / 40
Pitch
2.00 mm
Number of Rows
CODE Type
With CPA
With TPA
PCB Mounting Method
Soldering Process
Material
Board-side housing: PA10T; board-side terminal: copper alloy; wire-side housing: PBT
Rated Current
3 A AC/DC max/pin
Rated Voltage
Withstand Voltage
AC 500 V/min
Contact Resistance
10 mΩ max (initial); 30 mΩ max (after test)
Operating Temperature Range
−40°C to +125°C
Vibration Rating
Compatible Replacement
Note
