Wire to Board Connector
Wire-to-board connectors provide reliable cable-to-PCB connections for automotive, communication, and industrial electronics.
FILTER
-
Product Series
14131X Keyed Right-Angle SMT Wafer Series
WTB2203A Series
WTB2001X-8P / WTB2002X-8P Series
WTB3502 Series
WTB3501 Series
WTB2601 Series
WTB25401 Series
WTB2503 Series
WTB2502 Series
WTB2501 Series
WTB2202 Series
WTB2201 Series
14119X Series
WTB2.54-1 Series
14136X Series
14135X Series
P2.0-7-12P Board Side Series
P3.5 Series
24137X Series
14134X Series
14124X Series
141223X Series
14118X Series
X4117X Series
X4111X Series
14106X Series
X4101X Series
X4104X Series
24100X Series
-
Series type
Board connectors
Connector systems
Wire-side components
-
Pitch
1 mm
1.25 mm
1.8 mm
2 mm
2.2 mm
2.5 mm
2.54 mm
2.6 mm
3.5 mm
-
Number of rows
Single row
Double row
-
Mating orientation
Horizontal / right angle
Vertical
-
PCB mounting method
DIP / wave soldering
PIP / THR
SMT
-
With CPA
No
Yes
Apply
-

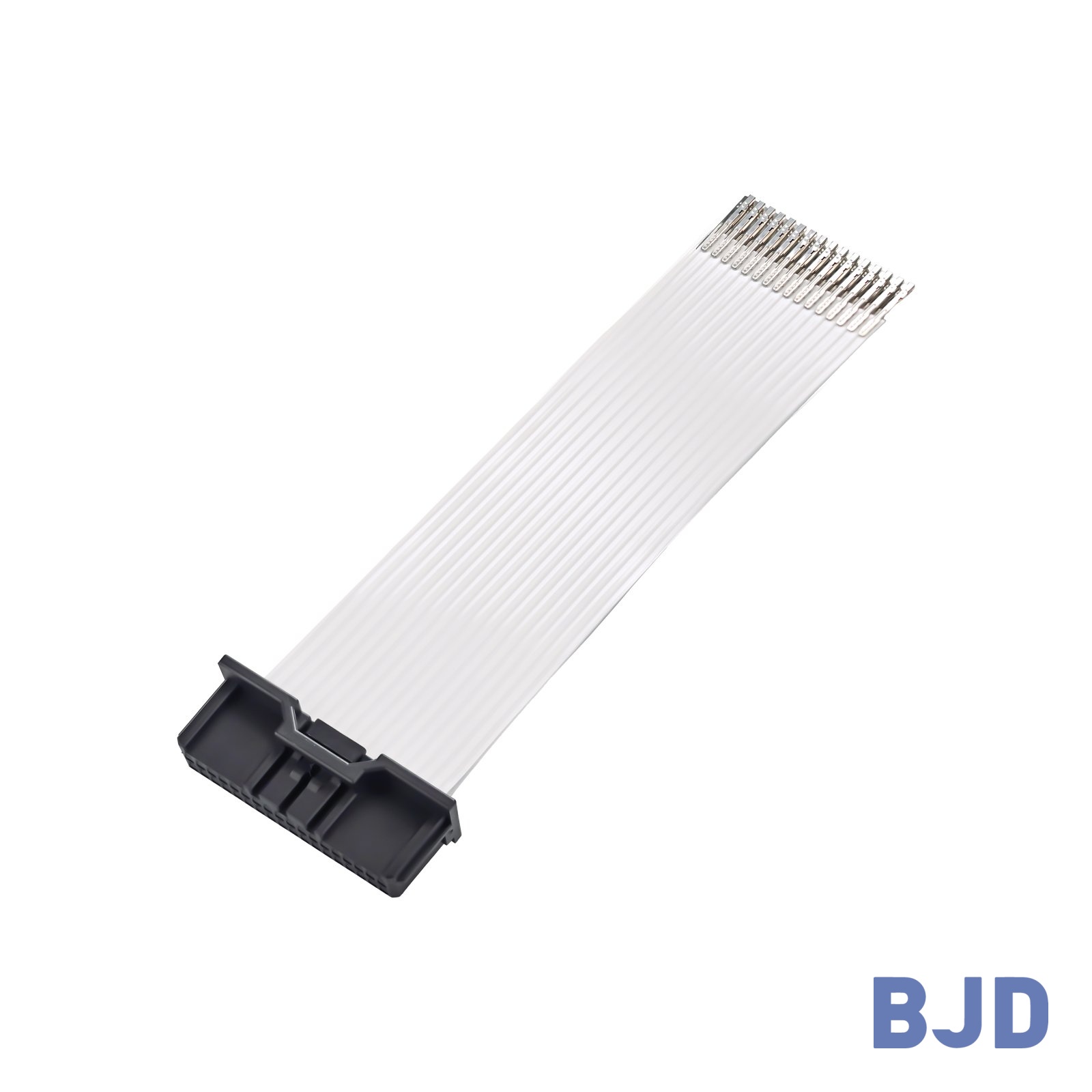

The 14124X Series comprises 2.00 mm pitch, 8- to 40-pin wire-side IDC housings with TPA and an operating temperature range of −40°C to +105°C.
Explore now
Specifications
Components
Component Type
Pin Count
8 to 40
Pitch
2.00 mm
Number of Rows
CODE Type
With TPA
Material
PBT
Rated Current
1 A AC/DC max/pin
Withstand Voltage
AC 500 V/min
Contact Resistance
10 mΩ max (initial); 30 mΩ max (after test)
Operating Temperature Range
−40°C to +105°C
Compatible Replacement
Note
-

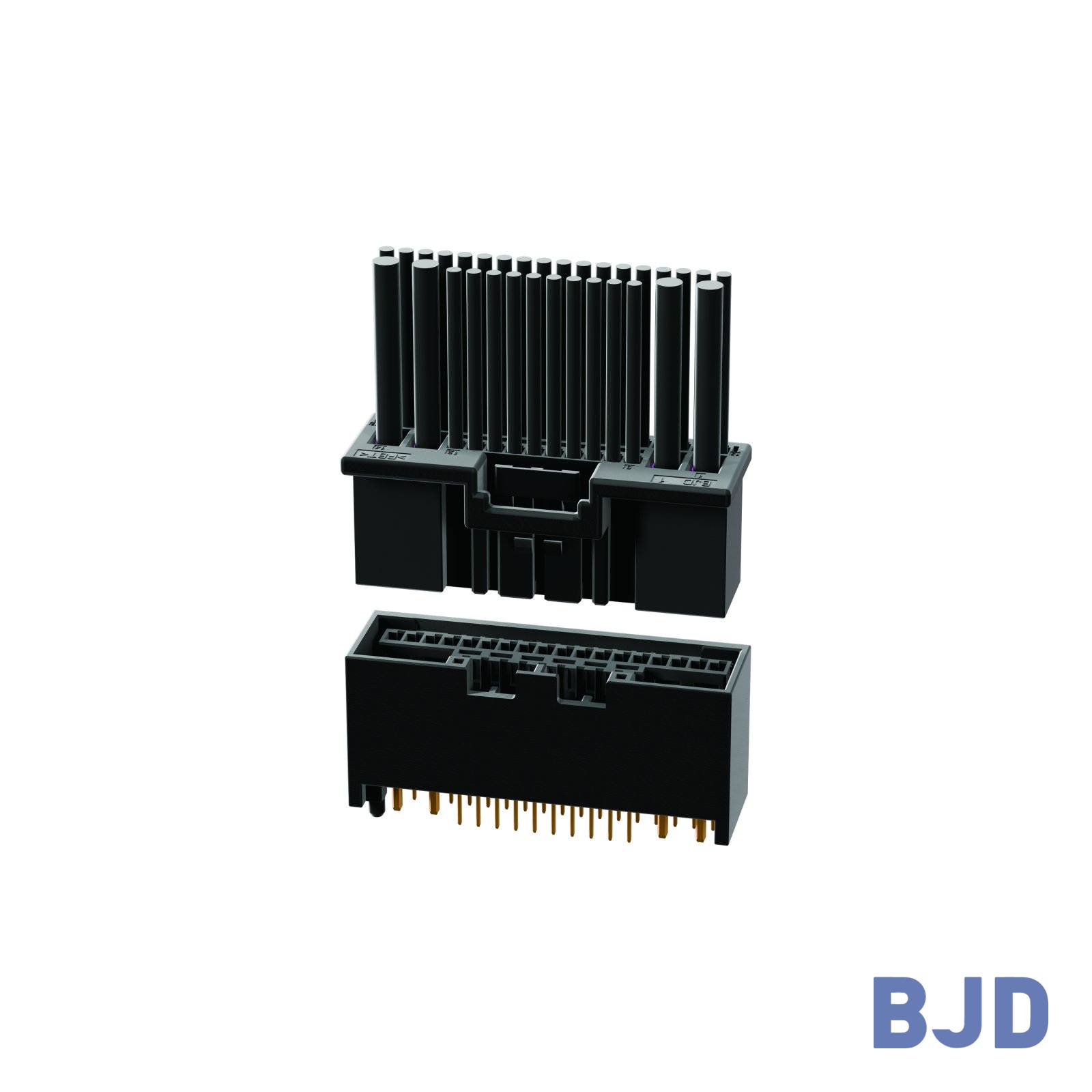

The 141223X Series is a 32-pin hybrid wire-to-board connector system with 28 signal positions and 4 power positions. It has a 2.00 mm signal pitch, a 4.00 mm power pitch, and an operating temperature range of −40°C to +125°C.
Explore now
Specifications
Components
Component Type
Pin Count
32 (28 signal + 4 power)
Pitch
Signal: 2.00 mm; power: 4.00 mm
Number of Rows
CODE Type
With CPA
With TPA
PCB Mounting Method
Soldering Process
Material
PPS+GF
Rated Current
Signal: 3 A AC/DC max/pin; power: 12 A AC/DC max/pin
Rated Voltage
Withstand Voltage
AC 500 V/min
Contact Resistance
Signal: 10 mΩ max (initial), 12 mΩ max (after test); power: 6 mΩ max (initial), 7 mΩ max (after test)
Operating Temperature Range
−40°C to +125°C
Vibration Rating
Compatible Replacement
Note
-
The 14118X Series is a 1.0 mm-pitch, 40-contact dual-row FFC-to-board connector for automotive electronics, with horizontal SMT mounting. Ratings are 1 A and 200 V, with an operating temperature range of -40°C to 125°C and LV214 S1 and USCAR V2 vibration performance. It provides alternatives to related SMK CFF5940-09XXE and CFF5740-09XXE parts and suits vehicle electronics requiring high-density FFC connectivity, high-temperature operation, and vibration resistance.
Explore now
Specifications
Components
Component Type
Pin Count
40
Pitch
1.0mm
Number of Rows
Double Row
CODE Type
With CPA
With TPA
PCB Mounting Method
Horizonta
Soldering Process
SMT
Material
Rated Current
1A(FFC)
Rated Voltage
200V
Withstand Voltage
Contact Resistance
Operating Temperature Range
-40℃ ~ 105℃
Vibration Rating
LV214 S1, USCAR V2
Compatible Replacement
SMK CFF5940-09XXE ; SMK CFF5740-09XXE
Note
-

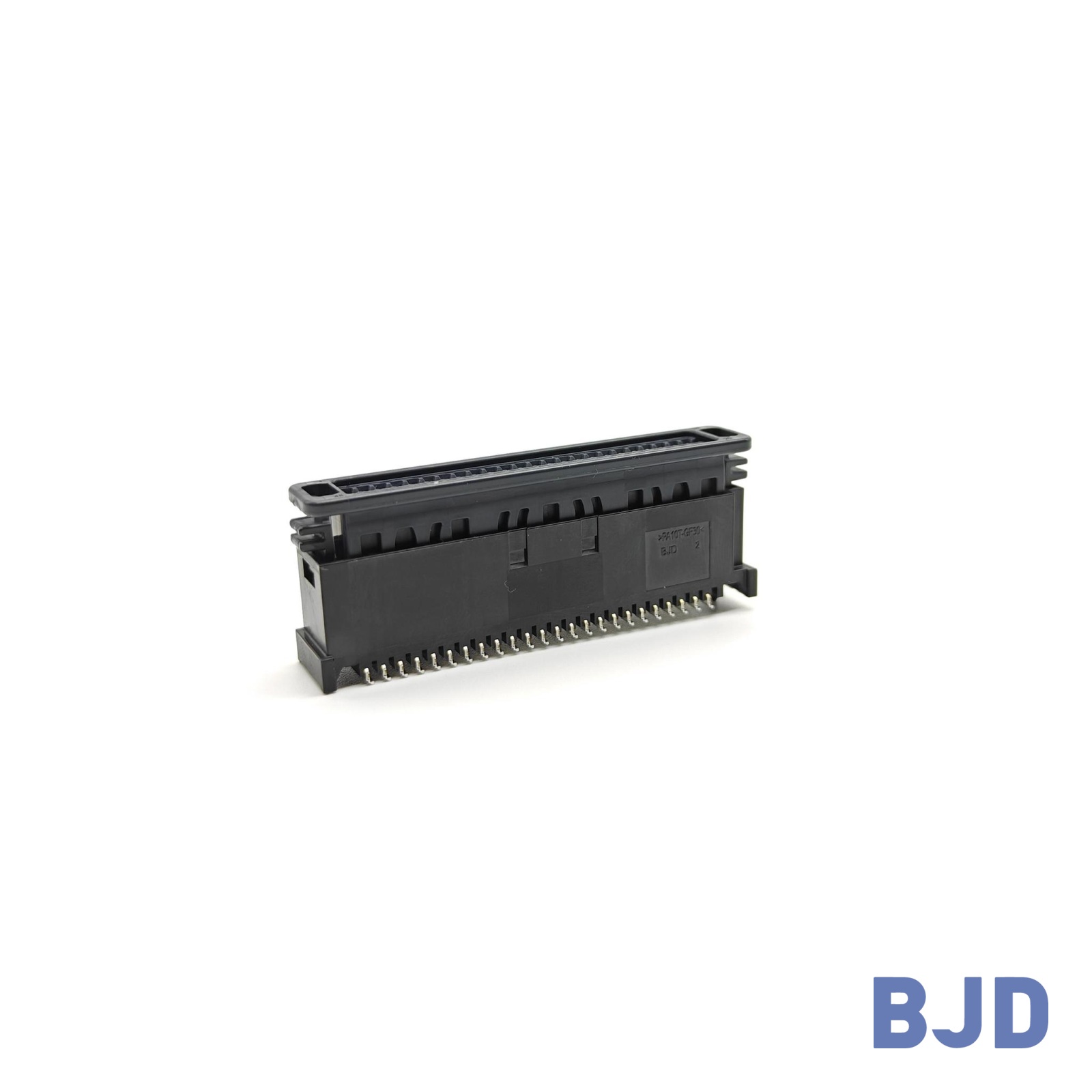

The X4117X Series is a 2.0 mm-pitch, dual-row wire-to-board connection system for automotive electronics, comprising board headers, cable-side housings and matching terminals. Vertical and right-angle SMT headers offer connection options for different PCB layouts. The cable-side design supports direct riveting of FPC/FFC to the terminals for compact connections in automotive lighting and similar applications.
Explore now
Specifications
Components
Component Type
Pin Count
40，48
Pitch
2.0mm
Number of Rows
Double Row
CODE Type
With CPA
With TPA
PCB Mounting Method
Vertical / Right-angle (board side)
Soldering Process
SMT
Material
Rated Current
1A（FPC Cable）
Rated Voltage
12V
Withstand Voltage
Contact Resistance
Operating Temperature Range
-40℃ ~ 105℃
Vibration Rating
LV214 S2
Compatible Replacement
TE NanoMQS; TE:2415829 2415780 2291853 2415823 2382718
Note
-

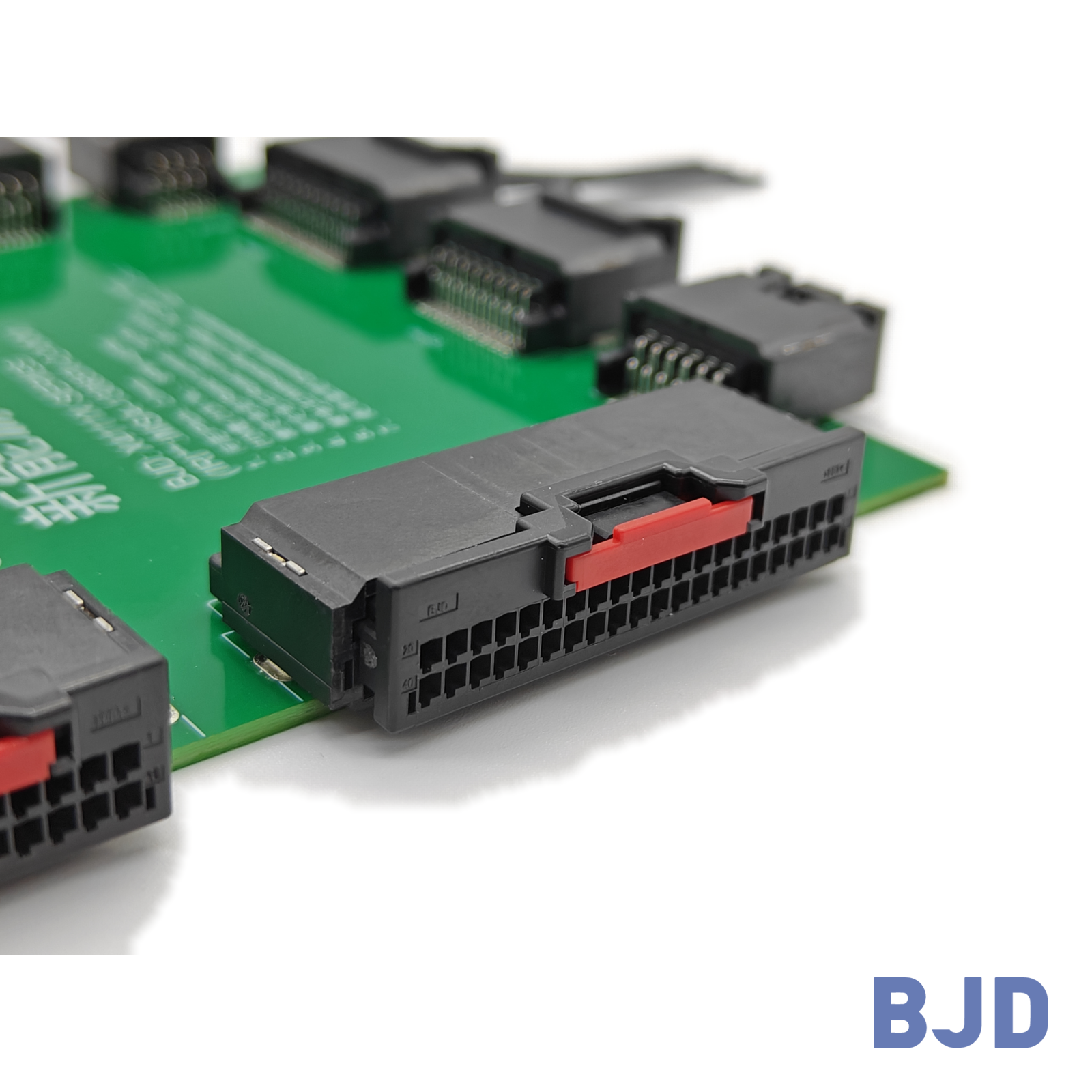

BJD has introduced the X4111X series wire-to-board connector with a 2.0mm pitch, which is suitable for interfaces in automotive equipment. This connector utilizes ultra-compact crimp terminals (with a label size of 0.5mm x 0.3mm) and adopts a box structure, resulting in a low-profile, high-density connector that reduces overall dimensions. Additionally, it offers three keying variants. The X4111X series is designed for high-temperature environments, capable of withstanding temperatures up to +125°C. It features a two-row, right-angle SMT (Surface Mount Technology) design, facilitating automated installation.
Explore now
Specifications
Components
Component Type
Pin Count
8, 12, 16, 20, 24, 28, 32, 40
Pitch
2.0mm
Number of Rows
CODE Type
With CPA
With TPA
PCB Mounting Method
Horizonta
Soldering Process
SMT
Material
Rated Current
3A
Rated Voltage
60V
Withstand Voltage
Contact Resistance
Operating Temperature Range
-40℃ ~ 125℃
Vibration Rating
LV214 S2，USCAR V2
Compatible Replacement
IRISO 13065 Series；IRISO 13065B-2-XXX-TR IMSA-13065B-2-XXY90X；IRISO 13065T-01A-T；IRISO 13065S-2-XXX IMSA-13065S-2-XXY50X
Note
